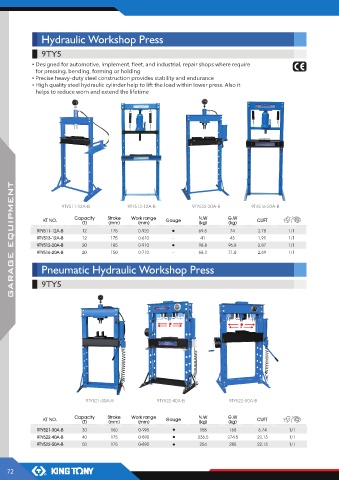

Hydraulic Workshop Press

9TY5
▪ Designed for automotive, implement, fleet, and industrial, repair shops where require
for pressing, bending, forming or holding
▪ Precise heavy-duty steel construction provides stability and endurance
▪ High quality steel hydraulic cylinder help to lift the load within lower press. Also it
helps to reduce worn and extend the lifetime

GARAGE EQUIPMENT

9TY511-12A-B 9TY513-12A-B 9TY512-20A-B 9TY516-20A-B

KT NO. Capacity Stroke Work range Gauge N.W G.W CUFT
(mm)
(mm)
(T)
(kg)
(kg)
9TY511-12A-B 12 175 0-920 69.5 74 2.78 1/1
9TY513-12A-B 12 175 0-610 - 41 43 1.91 1/1 GARAGE EQUIPMENT
9TY512-20A-B 20 185 0-910 98.8 96.8 2.87 1/1
9TY516-20A-B 20 150 0-710 - 68.3 71.8 2.69 1/1
Pneumatic Hydraulic Workshop Press

9TY5

9TY521-30A-B 9TY522-40A-B 9TY522-50A-B

KT NO. Capacity Stroke Work range Gauge N.W G.W CUFT
(mm)
(kg)
(kg)
(mm)
(T)
9TY521-30A-B 30 160 0-995 158 168 6.74 1/1
9TY522-40A-B 40 175 0-890 236.5 274.5 22.13 1/1
9TY522-50A-B 50 175 0-890 254 285 22.13 1/1
