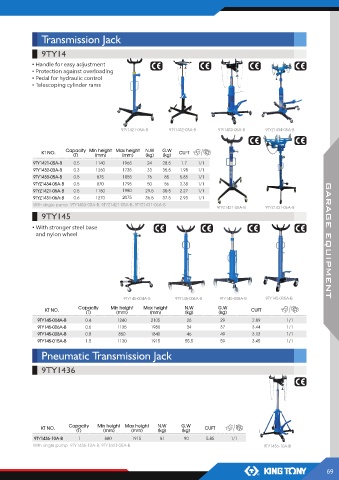

Page 71 - KING TONY車間目錄

Transmission Jack

9TY14
▪ Handle for easy adjustment
▪ Protection against overloading
▪ Pedal for hydraulic control
▪ Telescoping cylinder rams

9TY1421-05A-B 9TY1432-03A-B 9TY1433-05A-B 9TYZ1434-05A-B

KT NO. Capacity Min height Max height N.W G.W CUFT
(kg)
(kg)
(T)
(mm)
(mm)
9TY1421-05A-B 0.5 1140 1965 24 28.5 1.7 1/1
9TY1432-03A-B 0.3 1260 1735 33 35.5 1.98 1/1
9TY1433-05A-B 0.5 875 1855 76 85 5.85 1/1
9TYZ1434-05A-B 0.5 870 1795 50 56 3.38 1/1
GARAGE EQUIPMENT
9TYZ1421-05A-B 0.5 1180 1980 29.5 30.5 2.27 1/1
9TYZ1431-06A-B 0.6 1270 2075 36.5 37.5 2.93 1/1
With single pump 9TY1433-05A-B, 9TYZ1421-05A-B, 9TYZ1431-06A-B
9TYZ1421-05A-B 9TYZ1431-06A-B
9TY145
▪ With stronger steel base
and nylon wheel GARAGE EQUIPMENT

9TY145-004A-B 9TY145-006A-B 9TY145-008A-B 9TY145-015A-B
KT NO. Capacity Min height Max height N.W G.W CUFT
(T)
(mm)
(mm)
(kg)
(kg)
9TY145-004A-B 0.4 1240 2105 26 29 2.89 1/1
9TY145-006A-B 0.6 1135 1980 34 37 3.44 1/1
9TY145-008A-B 0.8 850 1840 46 49 3.13 1/1
9TY145-015A-B 1.5 1130 1915 55.5 59 3.45 1/1
Pneumatic Transmission Jack

9TY1436

KT NO. Capacity Min height Max height N.W G.W CUFT
(kg)
(kg)
(mm)
(mm)
(T)
9TY1436-10A-B 1 880 1915 81 90 5.85 1/1
With single pump 9TY1436-10A-B, 9TY1441-05A-B 9TY1436-10A-B
69
