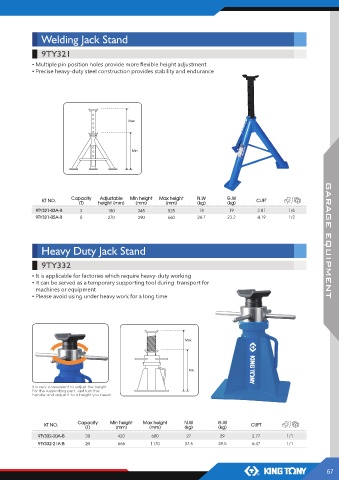

Welding Jack Stand
9TY321
▪ Multiple pin position holes provide more flexible height adjustment
▪ Precise heavy-duty steel construction provides stability and endurance
Max.
Min.
GARAGE EQUIPMENT
Adjustable
KT NO. Capacity height (mm) Min height Max height N.W G.W CUFT
(T)
(mm)
(mm)
(kg)
(kg)
9TY321-03A-B 3 180 345 525 18 19 2.81 1/6
9TY321-05A-B 5 270 390 660 24.7 23.2 4.19 1/2
Heavy Duty Jack Stand GARAGE EQUIPMENT
9TY332
▪ It is applicable for factories which require heavy-duty working
▪ It can be served as a temporary supporting tool during transport for
machines or equipment
▪ Please avoid using under heavy work for a long time
Max.
Min.
It is very convenient to adjust the height
For the supporting part. Just turn the
handle and adjust it to a height you need
KT NO. Capacity Min height Max height N.W G.W CUFT
(kg)
(kg)
(mm)
(T)
(mm)
9TY332-20A-B 20 420 680 27 29 2.77 1/1
9TY332-21A-B 20 665 1170 37.5 39.5 6.47 1/1
67
