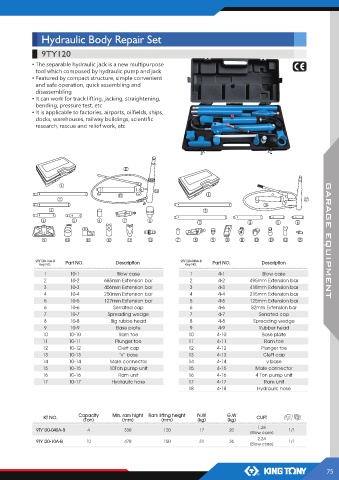

Hydraulic Body Repair Set

9TY120
▪ The separable hydraulic jack is a new multipurpose
tool which composed by hydraulic pump and jack
▪ Featured by compact structure, simple convenient
and safe operation, quick assembling and
disassembling
▪ It can work for track lifting, jacking, straightening,
bending, pressure test, etc
▪ It is applicable to factories, airports, oilfields, ships,
docks, warehouses, railway buildings, scientific
research, rescue and relief work, etc

GARAGE EQUIPMENT

9TY120-10A-B Part NO. Description 9TY120-040A-B Part NO. Description GARAGE EQUIPMENT
Key NO. Key NO.
1 10-1 Blow case 1 4-1 Blow case
2 10-2 685mm Extension bar 2 4-2 495mm Extension bar
3 10-3 456mm Extension bar 3 4-3 418mm Extension bar
4 10-4 250mm Extension bar 4 4-4 215mm Extension bar
5 10-5 127mm Extension bar 5 4-5 125mm Extension bar
6 10-6 Serrated cap 6 4-6 82mm Extension bar
7 10-7 Spreading wedge 7 4-7 Serrated cap
8 10-8 Big rubbe head 8 4-8 Spreading wedge
9 10-9 Base plate 9 4-9 Rubber head
10 10-10 Ram toe 10 4-10 Base plate
11 10-11 Plunger toe 11 4-11 Ram toe
12 10-12 Cleft cap 12 4-12 Plunger toe
13 10-13 'V' base 13 4-13 Cleft cap
14 10-14 Male connector 14 4-14 v base
15 10-15 10Ton pump unit 15 4-15 Male connector
16 10-16 Ram unit 16 4-16 4 Ton pump unit
17 10-17 Hydraulic hose 17 4-17 Ram unit
18 4-18 Hydraulic hose

KT NO. Capacity Min. ram hight Ram lifting height N.W G.W CUFT
(mm)
(kg)
(kg)
(Ton)
(mm)
1.28
9TY120-040A-B 4 330 120 17 20 (Blow case) 1/1
2.24
9TY120-10A-B 10 470 150 31 36 (Blow case) 1/1
75
