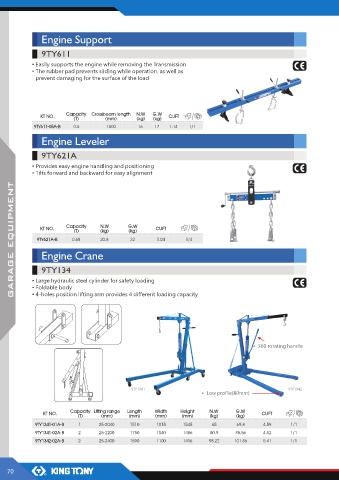

Page 72 - Equipo de Garaje de KING TONY

Engine Support

9TY611
▪ Easily supports the engine while removing the Transmission
▪ The rubber pad prevents sliding while operation, as well as
prevent damaging for the surface of the load

KT NO. Capacity Crossbeam length N.W G.W CUFT
(T)
(kg)
(kg)
(mm)
9TY611-05A-B 0.5 1500 16 17 1.14 1/1
Engine Leveler
9TY621A

▪ Provides easy engine handling and positioning
▪ Tilts forward and backward for easy alignment

GARAGE EQUIPMENT

KT NO. Capacity N.W G.W CUFT
(kg)
(T)
(kg)
9TY621A-B 0.68 20.8 22 1.04 1/4 GARAGE EQUIPMENT
Engine Crane

9TY134

▪ Large hydraulic steel cylinder for safety loading
▪ Foldable body
▪ 4-holes position lifting arm provides 4 different loading capacity

• 360 rotating handle

9TY1341 9TY1342
• Low profile(80mm)

KT NO. Capacity Lifting range Length Width Height N.W G.W CUFT
(kg)
(kg)
(mm)
(mm)
(mm)
(T)
(mm)
9TY1341-01A-B 1 25-2040 1510 1015 1545 65 69.8 4.59 1/1
9TY1341-02A-B 2 25-2200 1750 1040 1486 80.9 85.56 4.52 1/1
9TY1342-02A-B 2 25-2400 1590 1100 1416 98.22 101.56 5.41 1/1
70
