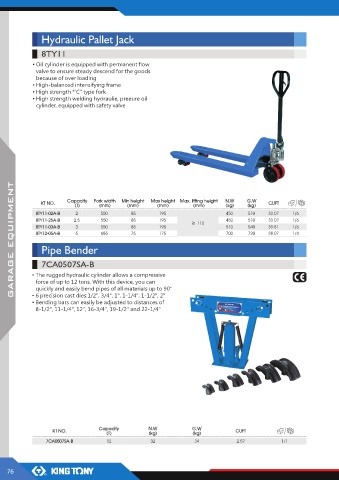

Page 78 - Equipo de Garaje de KING TONY

Hydraulic Pallet Jack

8TY11
▪ Oil cylinder is equipped with permanent flow
valve to ensure steady descend for the goods
because of over loading
▪ High-balanced intensifying frame
▪ High strength *'C" type fork
▪ High strength welding hydraulie, preeure oil
cylinder, equipped with safety valve

GARAGE EQUIPMENT

KT NO. Capacity Fork width Min height Max height Max. lifting height N.W G.W CUFT
(mm)
(kg)
(mm)
(kg)
(mm)
(mm)
(T)
8TY11-02A-B 2 550 85 195 450 510 33.07 1/6
8TY11-25A-B 2.5 550 85 195 ≧ 110 450 510 33.07 1/6
8TY11-03A-B 3 550 85 195 510 540 39.81 1/6
8TY12-05A-B 5 685 75 175 700 720 38.07 1/4 GARAGE EQUIPMENT
Pipe Bender
7CA0507SA-B

▪ The rugged hydraulic cylinder allows a compressive
force of up to 12 tons. With this device, you can
quickly and easily bend pipes of all materials up to 90°
▪ 6 precision cast dies:1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
▪ Bending bars can easily be adjusted to distances of
8-1/2", 11-1/4", 12", 16-3/4", 19-1/2" and 22-1/4"

KT NO. Capacity N.W G.W CUFT
(kg)
(T)
(kg)
7CA0507SA-B 12 32 34 2.57 1/1

76
