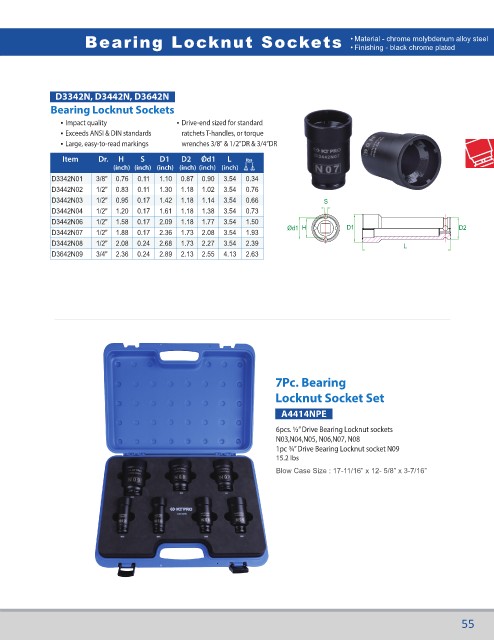

Page 55 - KT PRO Catalog

Bearing Locknut Sockets • Material - chrome molybdenum alloy steel
• Finishing - black chrome plated

D3342N, D3442N, D3642N
Bearing Locknut Sockets
▪ Impact quality ▪ Drive-end sized for standard
▪ Exceeds ANSI & DIN standards ratchets T-handles, or torque
▪ Large, easy-to-read markings wrenches 3/8" & 1/2”DR & 3/4”DR
Item Dr. H S D1 D2 O/ d1 L $
lbs
(inch) (inch) (inch) (inch) (inch) (inch)
D3342N01 3/8" 0.76 0.11 1.10 0.87 0.90 3.54 0.34 58.94
D3442N02 1/2" 0.83 0.11 1.30 1.18 1.02 3.54 0.76 75.06
D3442N03 1/2" 0.95 0.17 1.42 1.18 1.14 3.54 0.66 76.31 S
D3442N04 1/2" 1.20 0.17 1.61 1.18 1.38 3.54 0.73 79.56
D3442N06 1/2" 1.58 0.17 2.09 1.18 1.77 3.54 1.50 132.44
D3442N07 1/2" 1.88 0.17 2.36 1.73 2.08 3.54 1.93 148.31 Ød1 H D1 D2
D3442N08 1/2" 2.08 0.24 2.68 1.73 2.27 3.54 2.39 173.19 L
D3642N09 3/4" 2.36 0.24 2.89 2.13 2.55 4.13 2.63 181.25

7Pc. Bearing
Locknut Socket Set

A4414NPE
1 / 2
6pcs. ½” Drive Bearing Locknut sockets
N03,N04,N05, N06,N07, N08
1pc ¾” Drive Bearing Locknut socket N09
15.2 lbs
Blow Case Size : 17-11/16” x 12- 5/8” x 3-7/16”

55
