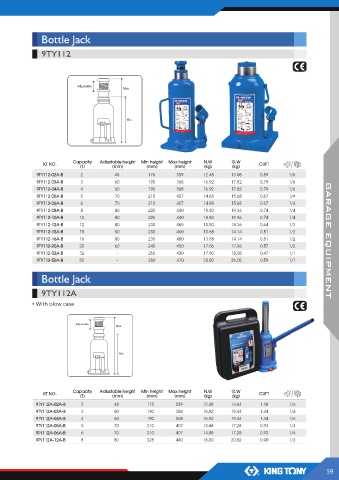

Page 61 - KING TONY車間目錄

Bottle Jack

9TY112

Adjustable
Max.

Min.

Capacity Adiustable height Min height Max height N.W G.W
KT NO. CUFT
(T) (mm) (mm) (mm) (kg) (kg)
9TY112-02A-B 2 48 175 339 12.48 13.08 0.59 1/6
9TY112-03A-B 3 60 190 368 16.92 17.82 0.79 1/6
GARAGE EQUIPMENT
9TY112-04A-B 4 60 190 368 16.92 17.82 0.79 1/6
9TY112-05A-B 5 70 210 407 14.88 15.68 0.67 1/4
9TY112-06A-B 6 70 210 407 14.88 15.68 0.67 1/4
9TY112-08A-B 8 80 225 440 18.80 19.36 0.74 1/4
9TY112-10A-B 10 80 225 440 18.80 19.36 0.74 1/4
9TY112-12A-B 12 80 230 465 18.80 18.36 0.64 1/3
9TY112-15A-B 15 80 230 460 13.88 14.14 0.51 1/2
9TY112-16A-B 16 80 230 460 13.88 14.14 0.51 1/2 GARAGE EQUIPMENT
9TY112-20A-B 20 60 240 450 17.56 17.96 0.57 1/2
9TY112-32A-B 32 - 260 430 17.80 18.05 0.47 1/1
9TY112-50A-B 50 - 280 470 25.80 26.05 0.59 1/1

Bottle Jack

9TY112A

▪ With blow case

Adjustable
Max.

Min.

KT NO. Capacity Adiustable height Min height Max height N.W G.W CUFT
(kg)
(kg)
(mm)
(mm)
(T)
(mm)
9TY112A-02A-B 2 48 175 339 12.48 14.64 1.18 1/6
9TY112A-03A-B 3 60 190 368 16.92 19.44 1.44 1/6
9TY112A-04A-B 4 60 190 368 16.92 19.44 1.44 1/6
9TY112A-05A-B 5 70 210 407 14.88 17.28 0.93 1/4
9TY112A-06A-B 6 70 210 407 14.88 17.28 0.93 1/4
9TY112A-12A-B 8 80 225 440 18.00 20.52 0.90 1/3

59
