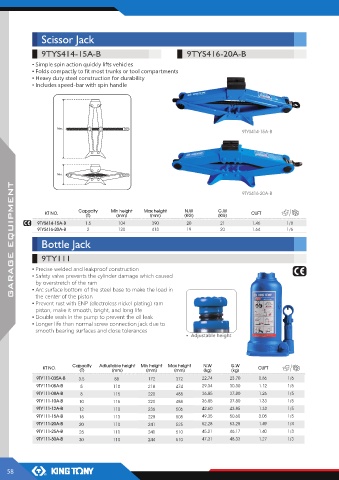

Scissor Jack

9TYS414-15A-B 9TYS416-20A-B
▪ Simple spin action quickly lifts vehicles
▪ Folds compactly to fit most trunks or tool compartments
▪ Heavy duty steel construction for durability
▪ Includes speed-bar with spin handle

Max.
9TYS414-15A-B

Min.
GARAGE EQUIPMENT
9TYS416-20A-B

N.W
KT NO. Capacity Min height Max height (KG) G.W CUFT
(KG)
(mm)
(mm)
(T)
9TYS414-15A-B 1.5 104 390 20 21 1.46 1/8
9TYS416-20A-B 2 120 413 19 20 1.64 1/6
Bottle Jack GARAGE EQUIPMENT
9TY111
▪ Precise welded and leakproof construction
▪ Safety valve prevents the cylinder damage which caused
by overstretch of the ram
▪ Arc surface bottom of the steel base to make the load in
the center of the piston
▪ Prevent rust with ENP (electroless nickel plating) ram
piston, make it smooth, bright, and long life
▪ Double seals in the pump to prevent the oil leak
▪ Longer life than normal screw connection jack due to
smooth bearing surfaces and close tolerances
• Adjustable height

KT NO. Capacity Adiustable height Min height Max height N.W G.W CUFT
(mm)
(mm)
(mm)
(kg)
(kg)
(T)
9TY111-035A-B 3.5 88 172 372 22.74 23.70 0.86 1/6
9TY111-05A-B 5 110 218 474 29.34 30.30 1.12 1/6
9TY111-08A-B 8 115 220 488 36.85 37.80 1.26 1/5
9TY111-10A-B 10 115 220 488 36.85 37.80 1.33 1/5
9TY111-12A-B 12 110 236 506 42.60 43.85 1.33 1/5
9TY111-15A-B 15 113 228 508 49.35 50.60 3.05 1/5
9TY111-20A-B 20 110 241 525 52.28 53.28 1.49 1/4
9TY111-25A-B 25 110 240 510 45.21 46.17 1.40 1/3
9TY111-30A-B 30 110 244 510 47.31 48.33 1.27 1/3

58
