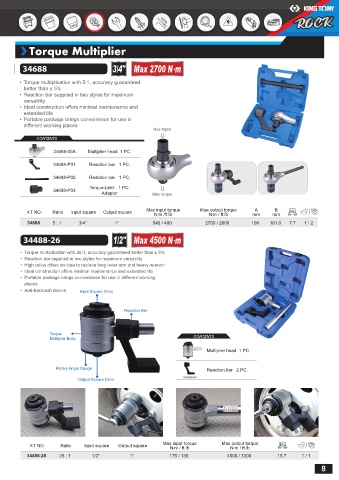

Page 9 - KING TONY Roca

Torque Multiplier

34688 3/4" Max 2700 N m

• Torque multiplication with 5:1, accuracy guaranteed
better than ± 5%
• Reaction bar supplied in two styles for maximum
versatility
• Ideal construction offers minimal maintenance and
extended life
• Portable package brings convenience for use in
different working places
Max Input
CONTENTS
34688-05A Multiplier head 1 PC.

34688-P01 Reaction bar 1 PC.

34688-P02 Reaction bar 1 PC.
Torque-Limit 1 PC.
34688-P03 Adapter Max torque

A
B
KT NO. Ratio Input square Output square Max input torque Max output torque mm mm kg
N‧m / ft‧lb
N‧m /ft‧lb
34688 5 : 1 3/4" 1" 540 / 400 2700 / 2000 108 161.0 7.7 1 / 2
34488-26 1/2" Max 4500 N m

• Torque multiplication with 26:1, accuracy guaranteed better than ± 5%
• Reaction bar supplied in two styles for maximum versatility
• High ratios offers an idea to replace long lever arm and heavy wrench
• ldeal construction offers minimal maintenance and extended life
• Portable package brings convenience for use in different working
places
• Anti-backlash device Input Square Drive

Reaction Bar

Torque
Multiplier Body CONTENTS
Multiplier head 1 PC.

Rotary Angle Gauge Reaction bar 2 PC.
Output Square Drive

KT NO. Ratio Input square Output square Max input torque Max output torque kg
N‧m / ft‧lb
N‧m / ft‧lb
34488-26 26 : 1 1/2" 1" 175 / 130 4500 / 3300 15.7 1 / 1
8
