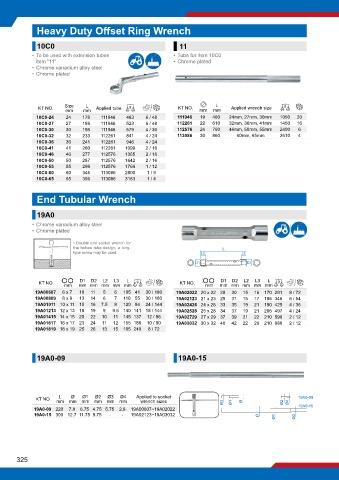

Page 366 - KING TONY目錄

Heavy Duty Offset Ring Wrench

10C0 11
• To be used with extension tubes • Tube for item 10C0
item "11" • Chrome plated
• Chrome vanadium alloy steel
• Chrome plated

L
L
KT NO. Size mm Applied tube g KT NO. mm mm Applied wrench size g
mm
10C0-24 24 178 111946 463 6 / 48 111946 19 460 24mm, 27mm, 30mm 1050 20
10C0-27 27 188 111946 523 6 / 48 112261 22 610 32mm, 36mm, 41mm 1450 16
10C0-30 30 198 111946 579 4 / 36 112576 24 760 46mm, 50mm, 55mm 2400 6
10C0-32 32 233 112261 841 4 / 24 113086 30 860 60mm, 65mm 2610 4
10C0-36 36 241 112261 946 4 / 24
10C0-41 41 260 112261 1099 2 / 16
10C0-46 46 277 112576 1365 2 / 16
10C0-50 50 287 112576 1642 2 / 16
10C0-55 55 298 112576 1766 1 / 12
10C0-60 60 345 113086 2800 1 / 9
10C0-65 65 356 113086 3183 1 / 4

End Tubular Wrench

19A0
• Chrome vanadium alloy steel
• Chrome plated

• Double end socket wrench for
the hollow tube design, a long- L
type screw may be used. L2 L3
D1 D2

L
D1
L3
D1
D2
L2
L3
L
L2
D2
KT NO. mm mm mm mm mm mm g KT NO. mm mm mm mm mm mm g
19A00607 6 x 7 10 11 5 6 105 41 30 / 180 19A02022 20 x 22 28 30 15 16 170 291 8 / 72
19A00809 8 x 9 13 14 6 7 110 55 30 / 180 19A02123 21 x 23 29 31 15 17 185 346 6 / 54
19A01011 10 x 11 15 16 7.5 8 120 84 24 / 144 19A02426 24 x 26 33 35 19 21 190 425 4 / 36
19A01213 12 x 13 18 19 9 9.5 140 141 18 / 144 19A02528 25 x 28 34 37 19 21 205 497 4 / 24
19A01415 14 x 15 20 22 10 11 145 137 12 / 96 19A02729 27 x 29 37 39 21 22 210 590 2 / 12
19A01617 16 x 17 23 24 11 12 155 186 10 / 90 19A03032 30 x 32 40 42 22 26 210 680 2 / 12
19A01819 18 x 19 25 26 13 15 165 240 8 / 72
19A0-09 19A0-15

Ø
L
Ø3
Ø2
Ø1
Ø4
KT NO. mm mm mm mm mm mm Applied to socket Ø3 Ø1 Ø Ø2 Ø4 19A0-09
wrench sizes
19A0-09 220 7.8 6.75 4.75 5.75 2.8 19A00607~19A02022 19A0-15
19A0-15 300 12.7 11.75 9.75 - - 19A02123~19A03032 Ø Ø1 Ø2

325
