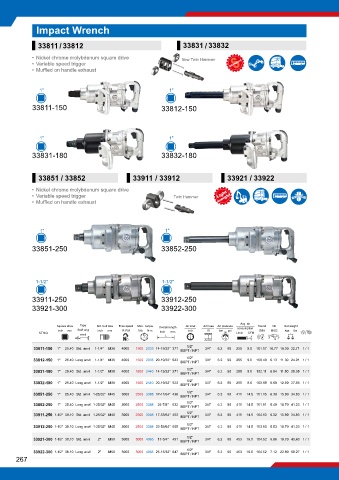

Page 308 - KING TONY目錄

Impact Wrench

33811 33812 33831 33832
/
/
• Nickel chrome molybdenum square drive New Twin Hammer
• Variable speed trigger
• Muffled on handle exhaust

1" 1"

33811-150 33812-150

1" 1"

33831-180 33832-180

/
/
33851 33852 33911 33912 33921 33922
/
• Nickel chrome molybdenum square drive
• Variable speed trigger Twin Hammer
• Muffled on handle exhaust

1" 1"

33851-250 33852-250

1-1/2" 1-1/2"

33911-250 33912-250
33921-300 33922-300

Avg. air
Square drive Type Std. bolt size Free speed Max. torque Overall length Air inlet Air hose Air pressure consumption Sound Vib Net weight
inch mm Std/Long inch mm R.P.M ft‧lb N‧m inch ID bar psi DBA M/S2 kgs Ibs
KT NO. inch mm L/min CFM
anvil L
1/2"
33811-150 1" 25.40 Std. anvil 1-1/4" M36 4000 1500 2033 14-19/32" 371 BSPT / NPT 3/4" 6.2 90 255 9.0 101.17 10.77 10.30 22.71 1 / 1
1/2"
33812-150 1" 25.40 Long anvil 1-1/4" M36 4000 1500 2033 20-19/32" 523 BSPT / NPT 3/4" 6.2 90 255 9.0 100.40 6.13 11.30 24.91 1 / 1
1/2"
33831-180 1" 25.40 Std. anvil 1-1/2" M38 4000 1800 2440 14-19/32" 371 BSPT / NPT 3/4" 6.2 90 255 9.0 102.11 8.84 11.50 25.35 1 / 1
1/2"
33832-180 1" 25.40 Long anvil 1-1/2" M38 4000 1800 2440 20-19/32" 523 BSPT / NPT 3/4" 6.2 90 255 9.0 103.99 6.60 12.50 27.56 1 / 1
1/2"
33851-250 1" 25.40 Std. anvil 1-25/32" M45 3000 2500 3388 17-11/64" 436 BSPT / NPT 3/4" 6.2 90 411 14.5 101.15 6.30 15.80 34.83 1 / 1
1/2"
33852-250 1" 25.40 Long anvil 1-25/32" M45 3000 2500 3388 24-7/8" 632 BSPT / NPT 3/4" 6.2 90 411 14.5 101.91 6.49 18.70 41.23 1 / 1
1/2"
33911-250 1-1/2" 38.10 Std. anvil 1-25/32" M45 3000 2500 3388 17-53/64" 453 BSPT / NPT 3/4" 6.2 90 411 14.5 104.13 6.32 15.80 34.83 1 / 1
1/2"
33912-250 1-1/2" 38.10 Long anvil 1-25/32" M45 3000 2500 3388 23-53/64" 605 BSPT / NPT 3/4" 6.2 90 411 14.5 103.90 6.53 18.70 41.23 1 / 1
1/2"
33921-300 1-1/2" 38.10 Std. anvil 2" M50 3000 3000 4065 17-3/4" 451 BSPT / NPT 3/4" 6.2 90 453 16.0 104.52 8.86 19.70 43.43 1 / 1
1/2"
33922-300 1-1/2" 38.10 Long anvil 2" M50 3000 3000 4065 25-15/32" 647 BSPT / NPT 3/4" 6.2 90 453 16.0 104.52 7.12 22.80 50.27 1 / 1
267
