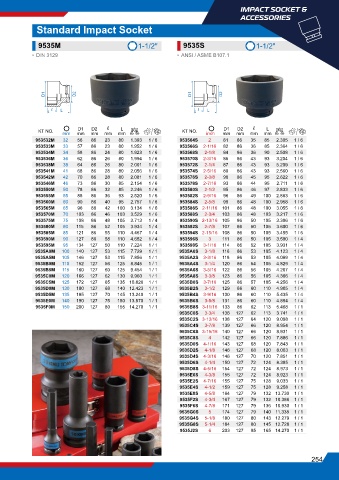

IMPACT SOCKET &
ACCESSORIES
Standard Impact Socket

9535M 1-1/2" 9535S 1-1/2"
• DIN 3129 • ANSI / ASME B107.1

D1 D2 D1 D2

l L l L

D2
D1
L
L
D2
D1
ℓ
ℓ
KT NO. mm mm mm mm mm Kg KT NO. inch mm mm mm mm Kg
953532M 32 56 86 23 80 1.393 1 / 6 953564S 2 81 86 35 85 2.305 1 / 6
953533M 33 57 86 23 80 1.952 1 / 6 953566S 2-1/16 82 86 36 85 2.364 1 / 6
953534M 34 58 86 24 80 1.923 1 / 6 953568S 2-1/8 84 86 36 90 2.508 1 / 6
953536M 36 62 86 26 80 1.994 1 / 6 953570S 2-3/16 85 86 43 93 3.204 1 / 6
953538M 38 64 86 26 80 2.001 1 / 6 953572S 2-1/4 87 86 43 93 5.209 1 / 6
953541M 41 68 86 28 80 2.056 1 / 6 953574S 2-5/16 89 86 43 93 2.560 1 / 6
953542M 42 70 86 28 80 2.081 1 / 6 953576S 2-3/8 90 86 45 95 2.622 1 / 6
953546M 46 73 86 30 85 2.154 1 / 6 953578S 2-7/16 93 86 44 95 2.711 1 / 6
953550M 50 78 86 32 85 2.246 1 / 6 953580S 2-1/2 95 86 46 97 2.833 1 / 6
953555M 55 85 86 36 93 2.520 1 / 6 953582S 2-9/16 96 86 49 100 2.863 1 / 6
953560M 60 90 86 40 95 2.757 1 / 6 953584S 2-5/8 99 86 48 100 2.958 1 / 6
953565M 65 96 86 42 100 3.134 1 / 6 953586S 2-11/16 101 86 48 100 3.055 1 / 6
953570M 70 103 86 46 103 3.529 1 / 6 953588S 2-3/4 103 86 48 103 3.217 1 / 6
953575M 75 108 86 48 105 3.713 1 / 4 953590S 2-13/16 105 86 50 105 3.306 1 / 6
953580M 80 115 86 52 105 3.934 1 / 4 953592S 2-7/8 107 86 50 105 3.600 1 / 6
953585M 85 121 86 55 110 4.467 1 / 4 953594S 2-15/16 108 86 50 105 3.455 1 / 6
953590M 90 127 86 58 110 4.652 1 / 4 953596S 3 111 86 50 105 3.590 1 / 4
953595M 95 134 127 50 110 7.224 1 / 1 953598S 3-1/16 114 86 52 105 3.931 1 / 4
9535A0M 100 140 127 53 115 7.729 1 / 1 9535A0S 3-1/8 116 86 53 105 4.123 1 / 4
9535A5M 105 146 127 53 115 7.856 1 / 1 9535A2S 3-3/16 118 86 53 105 4.089 1 / 4
9535B0M 110 152 127 56 125 8.845 1 / 1 9535A4S 3-1/4 120 86 54 105 4.829 1 / 4
9535B5M 115 160 127 60 125 9.454 1 / 1 9535A6S 3-5/16 122 86 56 105 4.207 1 / 4
9535C0M 120 166 127 62 130 9.960 1 / 1 9535A8S 3-3/8 123 86 56 105 4.306 1 / 4
9535C5M 125 172 127 65 135 10.826 1 / 1 9535B0S 3-7/16 125 86 57 105 4.256 1 / 4
9535D0M 130 180 127 68 140 12.423 1 / 1 9535B2S 3-1/2 129 86 60 110 4.905 1 / 4
9535D5M 135 185 127 70 145 13.240 1 / 1 9535B4S 3-9/16 130 86 60 110 5.435 1 / 4
9535E0M 140 190 127 75 150 13.570 1 / 1 9535B6S 3-5/8 131 86 60 110 4.894 1 / 4
9535F0M 150 200 127 80 155 14.270 1 / 1 9535B8S 3-11/16 133 86 62 113 5.468 1 / 1
9535C0S 3-3/4 136 127 62 113 3.741 1 / 1
9535C2S 3-13/16 138 127 64 120 9.098 1 / 1
9535C4S 3-7/8 139 127 66 120 8.954 1 / 1
9535C6S 3-15/16 140 127 66 120 8.931 1 / 1
9535C8S 4 142 127 66 120 7.886 1 / 1
9535D0S 4-1/16 143 127 68 120 7.843 1 / 1
9535D2S 4-1/8 146 127 68 120 8.003 1 / 1
9535D4S 4-3/16 146 127 70 120 7.851 1 / 1
9535D6S 4-1/4 150 127 72 124 8.385 1 / 1
9535D8S 4-5/16 154 127 72 124 8.973 1 / 1
9535E0S 4-3/8 155 127 72 124 8.923 1 / 1
9535E2S 4-7/16 155 127 75 128 9.033 1 / 1
9535E4S 4-1/2 159 127 75 128 9.258 1 / 1
9535E8S 4-5/8 164 127 79 132 13.730 1 / 1
9535F2S 4-3/4 167 127 79 132 10.386 1 / 1
9535F6S 4-7/8 171 127 79 136 10.930 1 / 1
9535G0S 5 174 127 79 140 11.338 1 / 1
9535G4S 5-1/8 180 127 80 143 12.279 1 / 1
9535G8S 5-1/4 184 127 80 145 12.728 1 / 1
9535J2S 6 203 127 85 165 14.270 1 / 1
