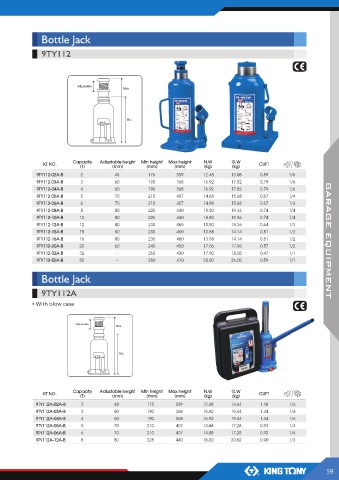

Page 61 - Equipo de Garaje de KING TONY

Bottle Jack

9TY112

Adjustable
Max.

Min.

Capacity Adiustable height Min height Max height N.W G.W
KT NO. CUFT
(T) (mm) (mm) (mm) (kg) (kg)
9TY112-02A-B 2 48 175 339 12.48 13.08 0.59 1/6
9TY112-03A-B 3 60 190 368 16.92 17.82 0.79 1/6
GARAGE EQUIPMENT
9TY112-04A-B 4 60 190 368 16.92 17.82 0.79 1/6
9TY112-05A-B 5 70 210 407 14.88 15.68 0.67 1/4
9TY112-06A-B 6 70 210 407 14.88 15.68 0.67 1/4
9TY112-08A-B 8 80 225 440 18.80 19.36 0.74 1/4
9TY112-10A-B 10 80 225 440 18.80 19.36 0.74 1/4
9TY112-12A-B 12 80 230 465 18.80 18.36 0.64 1/3
9TY112-15A-B 15 80 230 460 13.88 14.14 0.51 1/2
9TY112-16A-B 16 80 230 460 13.88 14.14 0.51 1/2 GARAGE EQUIPMENT
9TY112-20A-B 20 60 240 450 17.56 17.96 0.57 1/2
9TY112-32A-B 32 - 260 430 17.80 18.05 0.47 1/1
9TY112-50A-B 50 - 280 470 25.80 26.05 0.59 1/1

Bottle Jack

9TY112A

▪ With blow case

Adjustable
Max.

Min.

KT NO. Capacity Adiustable height Min height Max height N.W G.W CUFT
(kg)
(kg)
(mm)
(mm)
(T)
(mm)
9TY112A-02A-B 2 48 175 339 12.48 14.64 1.18 1/6
9TY112A-03A-B 3 60 190 368 16.92 19.44 1.44 1/6
9TY112A-04A-B 4 60 190 368 16.92 19.44 1.44 1/6
9TY112A-05A-B 5 70 210 407 14.88 17.28 0.93 1/4
9TY112A-06A-B 6 70 210 407 14.88 17.28 0.93 1/4
9TY112A-12A-B 8 80 225 440 18.00 20.52 0.90 1/3

59
