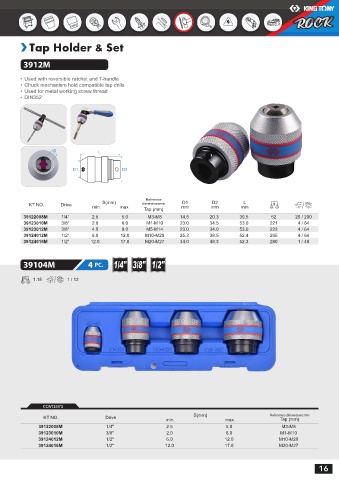

Tap Holder & Set

3912M

• Used with reversible ratchet and T-handle
• Chuck mechanism hold compatible tap drills
• Used for metal working screw thread
• DIN352

S L

D1 D2

Reference
D1
S(mm)
D2
L
KT NO. Drive min. max. dimensionsmm mm mm mm g
Tap (mm)
39122008M 1/4" 2.5 5.0 M3-M8 14.5 20.3 30.5 52 20 / 200
39123010M 3/8" 2.0 6.0 M1-M10 23.0 34.5 53.0 221 4 / 64
39123012M 3/8" 4.0 9.0 M5-M14 23.0 34.0 53.0 223 4 / 64
39124012M 1/2" 6.0 12.0 M10-M20 25.3 38.5 52.4 265 4 / 64
39124016M 1/2" 12.0 17.0 M20-M27 34.0 48.3 52.3 280 1 / 48

39104M 4 PC. 1/4" 3/8" 1/2"

Kg 1.15 1 / 12

CONTENTS
S(mm)
KT NO. Drive min. max. Reference dimensionsmm
Tap (mm)
39122008M 1/4" 2.5 5.0 M3-M8
39123010M 3/8" 2.0 6.0 M1-M10
39124012M 1/2" 6.0 12.0 M10-M20
39124016M 1/2" 12.0 17.0 M20-M27
