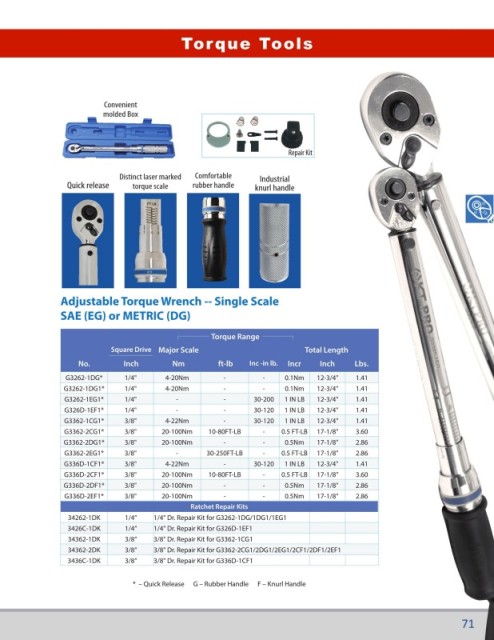

Page 71 - KT PRO Catalog

Torque Tools

Convenient
molded Box

Repair Kit

Distinct laser marked Comfortable Industrial
Quick release torque scale rubber handle knurl handle

Adjustable Torque Wrench -- Single Scale

SAE (EG) or METRIC (DG)

Torque Range
Square Drive Major Scale Total Length

No. Inch Nm ft-lb Inc -in lb. Incr Inch Lbs. $
G3262-1DG* 1/4" 4-20Nm - - 0.1Nm 12-3/4" 1.41 191.97
G3262-1DG1* 1/4" 4-20Nm - - 0.1Nm 12-3/4" 1.41 205.17
G3262-1EG1* 1/4" - - 30-200 1 IN LB 12-3/4" 1.41 216.14
G326D-1EF1* 1/4" - - 30-120 1 IN LB 12-3/4" 1.41 230.09
G3362-1CG1* 3/8" 4-22Nm - 30-120 1 IN LB 12-3/4" 1.41
G3362-2CG1* 3/8" 20-100Nm 10-80FT-LB - 0.5 FT-LB 17-1/8" 3.60
G3362-2DG1* 3/8" 20-100Nm - - 0.5Nm 17-1/8" 2.86
G3362-2EG1* 3/8" - 30-250FT-LB - 0.5 FT-LB 17-1/8" 2.86
G336D-1CF1* 3/8" 4-22Nm - 30-120 1 IN LB 12-3/4" 1.41
G336D-2CF1* 3/8" 20-100Nm 10-80FT-LB - 0.5 FT-LB 17-1/8" 3.60
G336D-2DF1* 3/8" 20-100Nm - - 0.5Nm 17-1/8" 2.86
G336D-2EF1* 3/8" 20-100Nm - - 0.5Nm 17-1/8" 2.86
Ratchet Repair Kits
Ratchet Repair Kits
34262-1DK 1/4” 1/4" Dr. Repair Kit for G3262-1DG/1DG1/1EG1
3426C-1DK 1/4” 1/4" Dr. Repair Kit for G326D-1EF1
34362-1DK 3/8” 3/8" Dr. Repair Kit for G3362-1CG1
34362-2DK 3/8” 3/8" Dr. Repair Kit for G3362-2CG1/2DG1/2EG1/2CF1/2DF1/2EF1
3436C-1DK 3/8” 3/8" Dr. Repair Kit for G336D-1CF1

* – Quick Release G – Rubber Handle F – Knurl Handle

71
