TORQUE CONTROL &
MULTIPLIERS

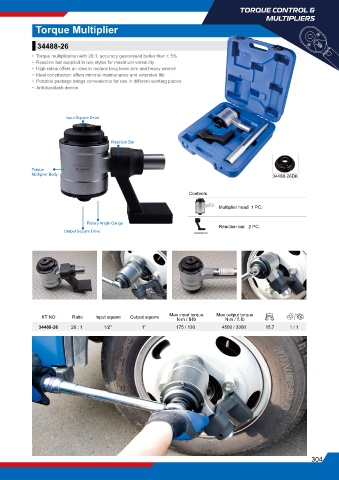

Torque Multiplier

34488-26

• Torque multiplication with 26:1, accuracy guaranteed better than ± 5%
• Reaction bar supplied in two styles for maximum versatility
• High ratios offers an idea to replace long lever arm and heavy wrench
• ldeal construction offers minimal maintenance and extended life
• Portable package brings convenience for use in different working places
• Anti-backlash device

Input Square Drive

Reaction Bar

Torque
Multiplier Body 34488-26DK

Contents

Multiplier head 1 PC.

Rotary Angle Gauge
Reaction bar 2 PC.
Output Square Drive

KT NO. Ratio Input square Output square Max input torque Max output torque kg
N‧m / ft‧lb
N‧m / ft‧lb
34488-26 26 : 1 1/2" 1" 175 / 130 4500 / 3300 15.7 1 / 1
