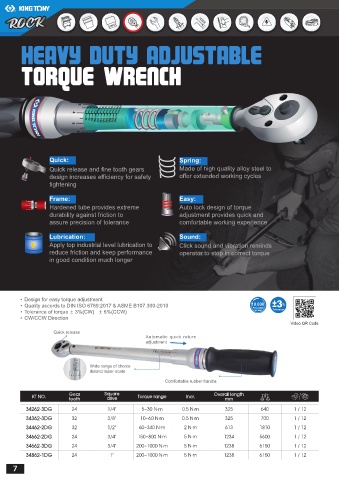

Page 8 - KING TONY 严选目录

Heavy Duty Adjustable

Torque Wrench

Quick: Spring:
Quick release and fine tooth gears Made of high quality alloy steel to
design increases efficiency for safety offer extended working cycles
tightening

Frame: Easy:
Hardened tube provides extreme Auto lock design of torque
durability against friction to adjustment provides quick and
assure precision of tolerance comfortable working experience

Lubrication: Sound:
Apply top industrial level lubrication to Click sound and vibration reminds
reduce friction and keep performance operator to stop in correct torque
in good condition much longer

• Design for easy torque adjustment
• Quality accords to DIN ISO 6789:2017 & ASME B107.300-2010 10,000 3
• Tolerance of torque ± 3%(CW) ± 6%(CCW)
• CW/CCW Direction
Video QR Code
Quick release
Automatic quick return
adjustment

Wide range of choice
distinct laser scale
Comfortable rubber handle

KT NO. Gear Square Torque range Incr. Overall length g
drive
teeth
mm
34262-3DG 24 1/4" 5~30 N‧m 0.5 N‧m 325 640 1 / 12
34362-3DG 32 3/8" 10~60 N‧m 0.5 N‧m 325 700 1 / 12
34462-2DG 32 1/2" 60~340 N‧m 2 N‧m 613 1810 1 / 12
34662-2DG 24 3/4" 150~800 N‧m 5 N‧m 1234 5600 1 / 12
34662-3DG 24 3/4" 200~1000 N‧m 5 N‧m 1238 6150 1 / 12
34862-1DG 24 1" 200~1000 N‧m 5 N‧m 1238 6150 1 / 12

7
