Gear Puller

Puller - Introduction

Product: Chuck Jaw Puller, and Pullers.
 Function: The main option is to demolish a central axis with the object. The average force to be able to pick up objects.

Three-jaw Puller

Jaw Puller

Puller - Specifications Features





Jaw

Three-jaw



Specification

Size

Load

Load

Claw length

3

2t

3t

60mm

 4

4t

6t

70mm

6

6t

9t

120mm

8

10t

15t

175mm

12

15t

22t

215mm

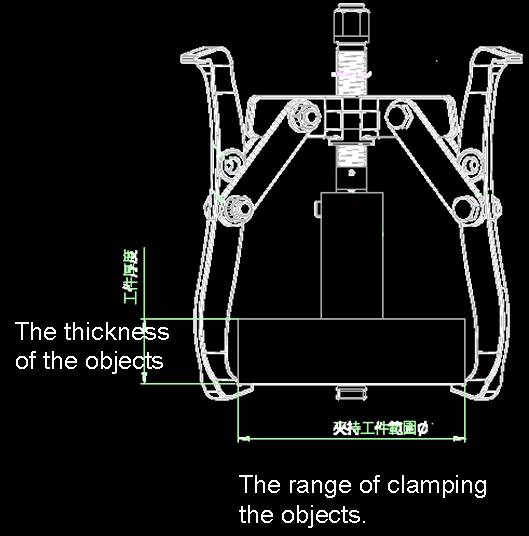

Specification Jaw opening distance Grab the object thickness
3 40mm~75mm 45mm
4 50mm~100mm 55mm
6 70mm~150mm 95mm
8 95mm~200mm 135mm
12 140mm~300mm 170mm













Puller - use

Puller - maintenance

 When you pay attention to the object position thimble center or harm to the object surface that is easy extractor. If space permits, try to use the three-jaw Puller, has been held hostage by force than the average. Gradually increase strength when pulling, do not try to screw Puller use pneumatic wrenches.



Proper use of

Improper use of
